What Is Air Lock in a Water Pump? Causes, Fixes & Prevention
Airlocks in pumps • Jet pump airlock • Shower pump airlock • Borehole pump airlock • Boiler airlock • Pipe airlock removal • Pump troubleshooting
Air lock is one of the most common reasons a water pump stops pumping water, runs dry, or loses pressure. Whether you have a jet pump, borehole pump, shower pump, booster pump, or boiler system, airlock can interrupt the flow and cause serious damage if not solved quickly.
This expert guide explains:
1. What Is an Air Lock in a Water Pump?
An air lock occurs when air bubbles get trapped inside the pump or pipes, blocking water flow. Because pumps are designed to move water—not air, the trapped air prevents the pump from creating enough suction or pressure.
Symptoms of Air Lock
-
Pump runs but no water comes out
-
Weak water pressure
-
Sputtering or irregular flow
-
Pump keeps priming itself
-
Pump overheats
-
Sudden stop after running normally
When air displaces water inside the pump, the motor runs dry, leading to pump damage, overheating, and burnt impellers.
2. What Causes Air Lock in a Water Pump?
Air lock can happen in any water pump system. The main causes include:
2.1 Low Water Levels
If the water source (well, tank, borehole) drops below the pump inlet, air gets sucked in.
2.2 Leaks in Suction Line
Even tiny leaks allow air to enter the pipe.
2.3 Poor Pump Priming
If the pump was not completely filled with water during installation or restart.

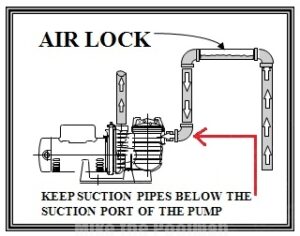

2.4 High Points in Piping
If pipes rise at certain angles, air gathers at the top and blocks flow.
2.5 Recently Drained Tanks or Boreholes
When tanks or boreholes are cleaned, pipelines refill with air.
2.6 Faulty Foot Valve / Non-Return Valve
A worn-out valve allows air to flow backward into the suction line.
2.7 Pump Installed Above Water Level
Creates natural vacuum spaces where air collects.
2.8 Hot Water Systems (Boilers)
Heat creates steam pockets that turn into airlocks in pipes.
3. What Is the Purpose of an Air Lock?
There is no intentional purpose for an air lock—it is not a feature, but a problem.
Some people confuse it with:
-
“Air chamber”
-
“Pressure tank”
These are designed features.
Air lock is accidental and harmful.
4. Most Effective Ways to Remove Air Lock in a Water Pump
The exact method depends on your pump type, but here are the universal solutions:
4.1 Method 1: Manual Priming (Most Common Fix)
-
Turn off the pump.
-
Open the priming plug.
-
Fill the pump completely with water.
-
Close the plug.
-
Restart the pump.
If water starts flowing immediately, the airlock is cleared.
4.2 Method 2: Force Water Through the System
Useful for long pipelines and borehole pumps.
-
Connect a hose from a pressurized water source (tap) to the pump outlet.
-
Push water backwards through the pipes.
-
Air escapes through the suction side.
4.3 Method 3: Bleed Valves (For Shower Pumps)
Shower pumps usually have bleed screws:
-
Loosen the screw with pump off.
-
Let trapped air escape.
-
Close once water appears.
4.4 Method 4: Siphon Method (Jet Pumps & Booster Pumps)
Fill both suction and discharge lines with water to create a full water column.
4.5 Method 5: Forcing the Pump to Cycle
Turn pump ON and OFF rapidly to shake out trapped air.
(Not recommended for long periods—can damage pump.)
5. Airlocks in Shower Pumps – Causes, Fixes & Prevention
Shower pumps are extremely prone to air lock because they use low-pressure lines.
Causes
-
Hot water expansion
-
Tank refilling
-
Negative pipe gradient
-
Air in mixer taps
-
Blocked filters
Fix
-
Bleed the pump
-
Prime the suction pipe
-
Lower the pump relative to the tank
-
Clean filters
Prevention
-
Keep tanks always above pump level
-
Avoid sharp pipe bends
-
Install anti-airlock valves
6. How To Remove Airlock in Jet Pumps
Jet pumps lose prime easily.
How to fix a jet pump airlock
-
Fill pump casing with water
-
Fill suction pipe
-
Replace priming cap
-
Check for suction leaks
-
Ensure foot valve is not stuck
This fully restores suction.
7. Boiler Airlock Causes & How To Fix an Airlock in Pipes
Boilers create airlocks when:
-
Hot water expands into steam
-
Radiators trap air
-
Pump pressure drops
Fix
-
Bleed radiators
-
Bleed boiler pump
-
Open highest faucets to release air
-
Check boiler pressure (should be 1–2 bar)
8. How Do You Get Rid of an Airlock in a Water Pump? (Quick Summary)
-
Prime the pump
-
Bleed air valves
-
Pressurize the lines
-
Repair pipe leaks
-
Replace faulty foot valve
-
Adjust installation height
-
Ensure water source is steady
9. How to Prevent Air Lock Permanently
-
Install foot valve or NRV
-
Remove high spots in pipes
-
Use a constant water level
-
Seal all suction leaks
-
Keep pump below water level
-
Maintain full water column
10. Frequently Asked Questions (FAQ)
1. What are the signs of air lock in a pump?
No water, weak pressure, sputtering water, pump running dry, or overheating.
2. Will air lock damage my pump?
Yes.
It causes overheating, impeller wear, dry-running, and motor burnout.
3. How do I remove air lock from pipes in a house?
Open all taps, especially the highest one, until air escapes.
4. Why does my shower pump stop after a few seconds?
Air lock or blocked filters.
5. Can borehole pumps get air lock?
Yes — especially shallow wells with dropping water levels.
6. Does hot water create more airlocks?
Yes — heat creates steam pockets.
Our Products
Sale
20CPM-200 Booster Water Pump (200W)
Original price was: KSh 18,000.00.KSh 15,999.00Current price is: KSh 15,999.00.Sale
DQ15F Water Booster Pump
Original price was: KSh 30,000.00.KSh 28,800.00Current price is: KSh 28,800.00.Sale
DSmart 500 Smart Water Booster Pump
Original price was: KSh 60,000.00.KSh 36,000.00Current price is: KSh 36,000.00.Sale
GMA Series ShowFou Water Pressure Booster Pump
Original price was: KSh 34,500.00.KSh 34,000.00Current price is: KSh 34,000.00.Sale
GQA Series ShowFou Water Pressure Booster Pump
Original price was: KSh 36,000.00.KSh 35,000.00Current price is: KSh 35,000.00.Sale
New
Intelligent Centrifugal Booster Pump 20CPM-200 Price in Kenya
Original price was: KSh 18,000.00.KSh 15,999.00Current price is: KSh 15,999.00.Sale
ShowFou UB Constant Pressure Pump Series
Original price was: KSh 31,000.00.KSh 30,000.00Current price is: KSh 30,000.00.Sale
ShowFou UH Series Hot Water Booster Pump
Original price was: KSh 40,000.00.KSh 39,000.00Current price is: KSh 39,000.00.Sale
Silent Automatic Water Booster Pump – Model KAP-500PM
Original price was: KSh 60,000.00.KSh 36,000.00Current price is: KSh 36,000.00.Sale
New
Smart 300 Booster Pump (C30) Price in Kenya – Intelligent Constant Pressure Water Pump
Original price was: KSh 36,000.00.KSh 33,000.00Current price is: KSh 33,000.00.Sale
New
Smart 400 Booster Pump (FGZ2-20-400) Price in Kenya – Silent Intelligent Water Pressure Booster Pump
Original price was: KSh 38,000.00.KSh 28,000.00Current price is: KSh 28,000.00.Sale
New
Smart 600 Booster Pump (FGZ2-30-600) Price in Kenya – Intelligent Silent Water Pressure Booster Pump
Original price was: KSh 42,000.00.KSh 30,000.00Current price is: KSh 30,000.00.Sale
New
Smart 750 Booster Pump (GT55) in Kenya – Intelligent Constant Pressure Water Pump
Original price was: KSh 69,000.00.KSh 59,000.00Current price is: KSh 59,000.00.Conclusion
Air lock is a common problem across water pumps, jet pumps, shower pumps, booster pumps, borehole pumps, and boiler systems. Proper priming, sealing, bleeding, and installation prevent future issues.
